How to Model Primavera Activity ID and Quantity Measurement System using Multiple to Multiple in PowerBI

whenever I need to join Primavera Activity id to the quantity measurement system, I use this pattern, it did serve me well all those years, recently I started a new project where for the first time, I don’t get an extract using Excel but a proper live connection to SQL server 🙂

To get something quickly running, I started using the same approach, load Primavera export, unpivot the date and normalize it, every activity has a spread from 0 to 100 % then merge it to a Table from SQL server, all working as expected.

Although it works well, it is a bit clunky , specially that the export from Primavera does not change frequently, for the baseline maybe once a year and the forecast once a month,  so instead of merging the data using Powerquery, I loaded the Primavera data as a separate table, here what the model looks like

As you have guessed the Activity id is duplicated in both tables

Now the Metric I am looking for is how to spread the budget hours from the table BOQ using the spread ( 0-100 %) from Primavera, let’s say I filter 1 row from the BOQ the result should be something like this

As it is multiple to multiple if you simply multiply the hours X spread you get duplicate values

Planned_Hours_no_filter = sumx(Primavera, [remaining_hrs]*Primavera[Spread]) = 950K hours

Obviously, it is the wrong, the total remaining hours is 49K only, the maximum spread should be 49K (or less if some activities ID are not mapped.)

The solution is to create an explicit filter and get the hours only for the specific activiy ID

Planned_Hours = sumx(Primavera, CALCULATE([remaining_hrs],filter(BOQ,BOQ[Activity ID]=Primavera[Activity ID]))*Primavera[Spread])

And here is the result

I checked with the old model and all the results match, to be honest I am not a huge fan of multiple to multiple but in this case, it is worth it, less refresh time and got rid of two big tables.

you can download the pbix here

SharePoint / PowerBI / Primavera P6 Integration – By Darrin Kinney

Which mix of applications will improve your construction progress reports? Understand simple steps, like adding comments to SharePoint and quickly publishing Primavera construction data through Excel, Access, and PowerBI.

I have dreamed about the ability to easily integrate many of my favorite applications. A few technological roadblocks had prevented me from pursuing this, but I am finally in a position to showcase what I view to be a quite seamless integration chain and management process.

Our key objective is to

  1. View our schedule activities
  2. Allow our area specific team to provide commentary on each activity (if we view the activity deviating from our plan or perhaps need to include notes about key interfaces)
  3. Allow our project wide team view our comments
  4. Provide a tool to present schedule and progress aspects of our area

Note that I still view JIRA as providing a tool that immediately makes this post redundant.  Although, in lieu of everyone jumping on JIRA, let’s dive right into an interesting use case of common applications.

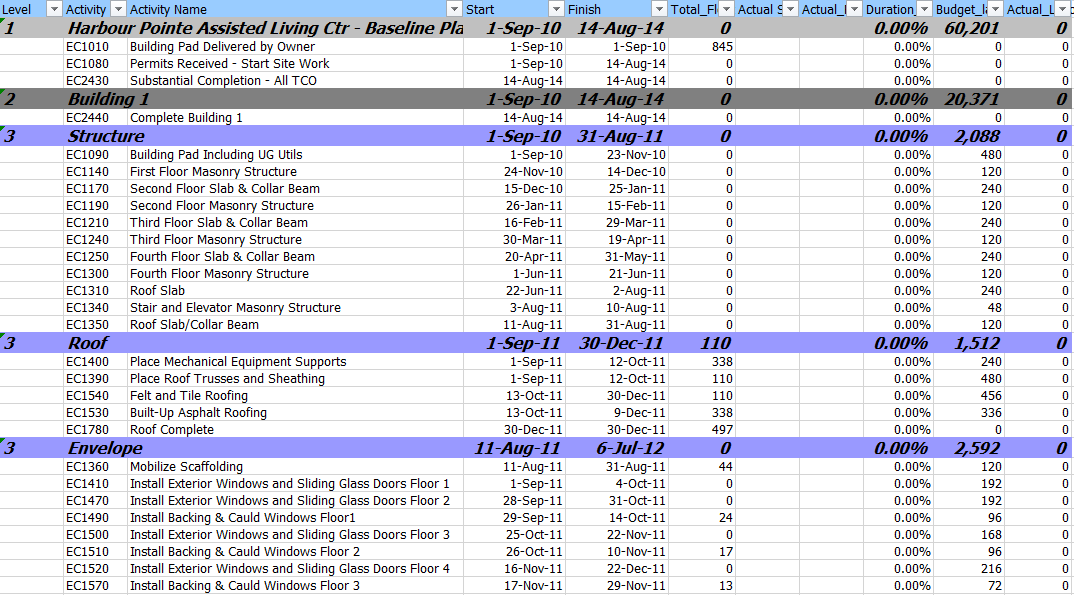

Primavera exported to Excel

For this example, I am using dummy schedule data. The ideas here are quite universal and can be used with any schedule. Care should be take to ensure proper filtering to avoid ever displaying too many activities.

The key objective here is to be able to export our activities to Excel and then upload the data into a SharePoint list. Tools, such as XER reader, provide the ability to quickly move activities into Excel.


Here, a lot of interesting hacks and strategy come into play.

Digital Strategy – Enter Data Once

SharePoint is a perfect tool for editing data in one location, and to source it in many different ways without having to reenter it.

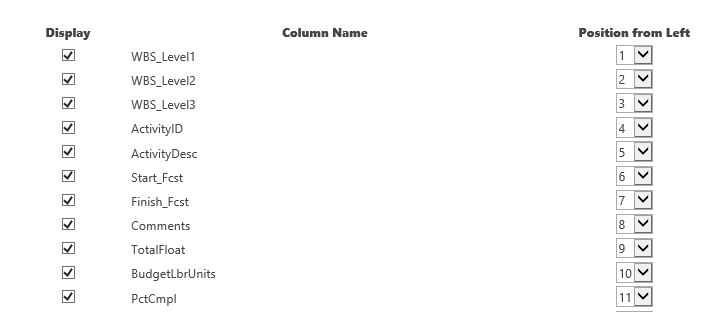

The first thing we need to do is create a list.


You can insert a few more columns to pull in Plan Dates, or prior updated dates. However, we are only looking at a comments functionality with this list. We can live with a very stripped down data set (and leave PowerBI to capture everything at a later point).


The above view is what you would see in the edit view on your SharePoint website. This functionality is fast and allows a team to provide a much more concise internal list of comments specific to each activity (or perhaps only key interface activities).

Where the above doesn’t work? It doesn’t work in situations where we might have a chain of comments. SharePoint allows effectively free text fields. We can enter multiple lines of data for each comment and include dates inside the comment for when the comment was made. There are more sophisticated data models that would allow for multiple comments to be actioned on each activity. However, this example is a lightweight solution — using easily available, off-the-shelf technology. From this point, we dive into your standard PowerBI template.

An URL with predefined filter criteria applied to the SharePoint list is simple. However, we need to use this with caution, because we may end up with 1000s of activities in SharePoint and it will be hard to update this in the future.

Microsoft Access

It is possible to directly edit a SharePoint list using MS Access. In this example, we get constant updates from our contractors on dates. Keep in mind, the SharePoint list is not the management tool for the dates or progress (however — looking at the above, it can be!).

To allow for the list to be bulk updated with new dates and progress figures, we can utilize a query in MS Access. I am a firm believer in the ability for MS Access to facilitate moving data between different systems.


In this example, I will be using an existing template I have previously discussed (follow this link to the Construction Progress Reporting post).


Where reports in PowerBI fall over, is that users have a difficult time actually being engaged as managers of the data. We do not have an easy ability to provide context or comments to specific data elements.

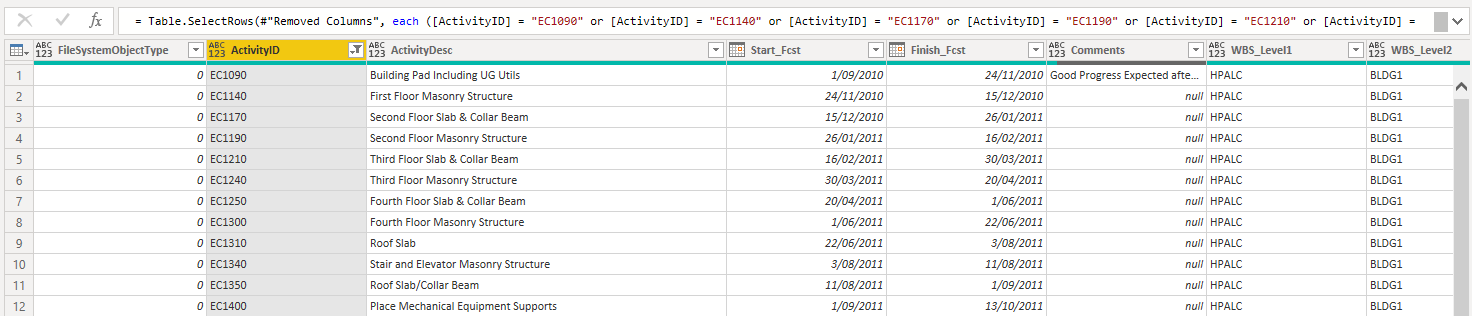

Here, we can immediately see that we can interface this dashboard with our SharePoint list. In our PowerBI queries, we can link to the SharePoint list.


As our schedule data is unique per ScheduleID, and our SharePoint list is unique per ScheduleID, we can link these 2 tables together and pull the comments into our table.

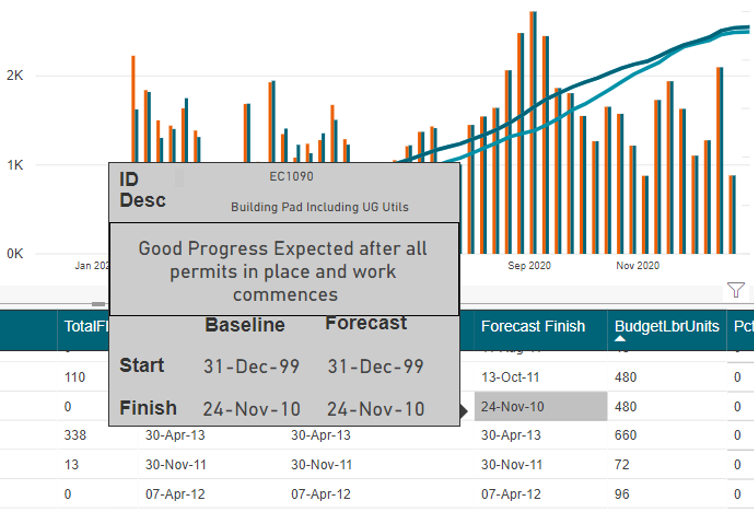

The resulting comment can the efficiently placed on a custom tooltip.


As with any comment, it is important to include an indication of criticality. In the above picture, we don’t have an indication if a comment exists, and if a comment does exist we do now know if its important. Therefore, in our SharePoint list, we can use an extension to insert a traffic light in the cell. Then on the PowerBI visual, a traffic light is displayed using a small, colored circle. This would allow for quickly glancing at all the activities and being able to quickly drill into a critical comment.

This is different from looking at Total Float or Variations. Typically on-site, various activities have issues for various reasons that may not have anything to do with float or variances. These may be risk-related issues we are trying to prevent, or perhaps gets others to understand. This approach to comments is exactly what can lend value to a project.

How to Keep Your Primavera P6 Clean?

This article addresses to all the schedulers and project professionals who import schedules into scrubbing P6 databases, remove undesired data, export the cleaned XER, and then import to a production database or share with third-parties such as contractors or sub-contractors.

If it happens to you to go through such a process, then you might want to read this article and see the better way to “clean” a XER file, prevent external data from corrupting your database thus maintain security and keep schedule integrity.

You can achieve this with a simple tool called ScheduleCleaner.

Now, I want to explain how the tool works and how you can benefit from it.

How to get started with ScheduleCleaner?

ScheduleCleaner is a desktop application for Windows operating system. It’s not connected to a database, and does not require internet connection to use it.

The “cleaning” process of an XER file can be achieved in 5 steps as explained below.

  1. Launch the software;
  2. Add an XER File;
  3. Select the output folder;
  4. Click on the categories of data you want to remove;
  5. Click “Clean” button.

As you can see, there is no manual work, no editing of a XER file in Notepad, and no scrubbing databases.

Steps to "clean" XER file with ScheduleCleaner

The software is intuitive, easy-to-use, and works offline as a standalone desktop application.

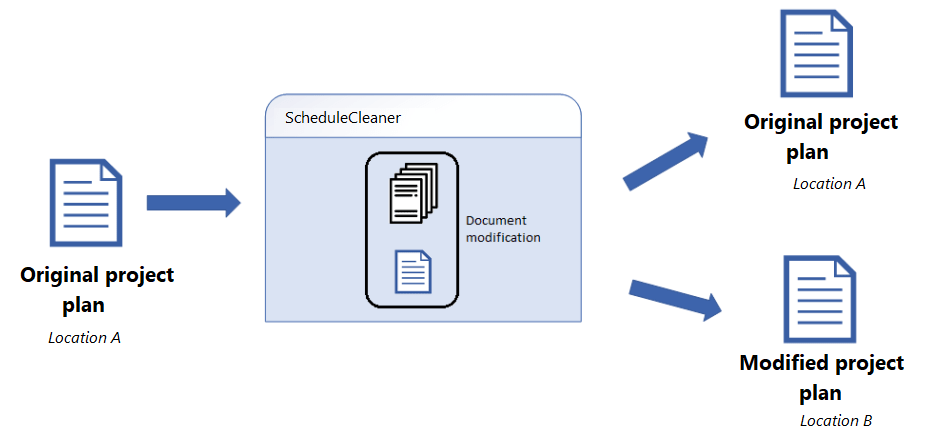

What’s more important, the software does not modify the original project plan. Instead it creates a copy and modifications are saved in the new file. The original project plan remain untouched.

Now, let’s see what you can accomplish with this tool in more specifics.

Removing POBS

If it takes a lot of time to import XER file intro Primavera P6 database, POBS data might be the reason for that.

Overall, the POBS defect affect the performance of the application and users lose valuable during the import operation. According Oracle, the POBS data is not used yet:

“We do not utilize the POBS table yet we export/import the data from this table when completing XER Export/Import. The XER export/import should be written to exclude this data with XER export/import operations of P6 Professional.”

The removal of POBS data can be done manually, but the process is prone to errors and can be time consuming.

The impact of all these errors when managing global data in an enterprise, will ultimately result in a polluted database and unconscious mistakes on a project level.

So using a tool for removing POBS data is desirable.

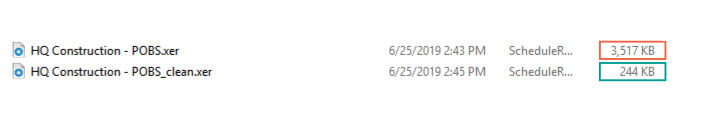

You can see a significant difference of the file size before and after cleaning POBS which greatly affects the time needed to import XER file into a Primavera P6 database.

Imagine the time that can be saved for larger XER files.

Remove Units, Rates, Cost, Pricing, Progress

As the purpose of exporting data files in XER format is to transmit project data to another database, in many cases data should be kept private. For example, a general contractor wants to send the project to a sub-contractors, but without the cost of resources.

Another examples is related with the GDPR regulation. Namely project schedulers and managers share files that contain sensitive information such as resource names that can disrupt the guidelines of the GDPR.

To be GDPR compliant, companies need to hide/anonymize confidential information, and ScheduleCleaner is the perfect tool to easily and securely protect sensitive information.

Just by clicking checkboxes, users who want to share the XER schedule can pick certain categories of data that want to be removed from the schedule before sending to third-parties or upload to a Primavera P6 database.

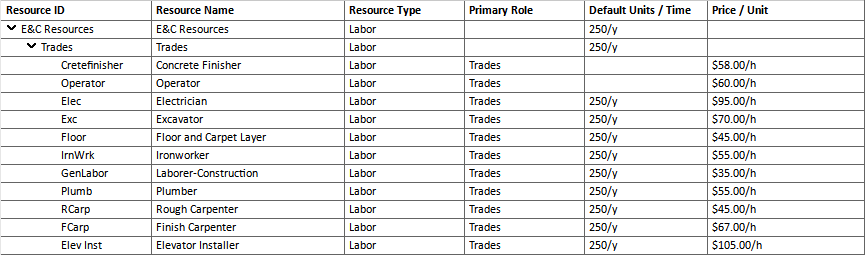

Before “cleaning” prices
After “cleaning” prices

Mask Project Data

Similar as removing certain categories of data, you can also mask project data.

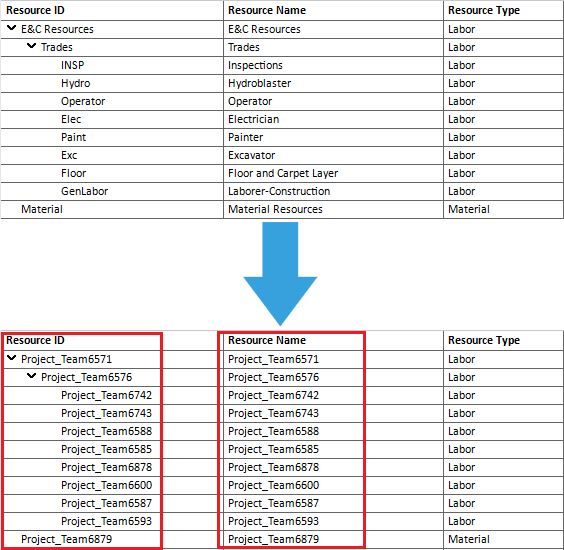

The only difference is that with masking, you can add custom codes, labels or text for the specific categories.

Add Prefix/Suffix

Inserting prefix or suffix to different categories in the project plan, can give additional information to the person who reads the information and acts according them.

To add Prefix/Suffix, you need to select the template that will contain Prefix/Suffix, select the appropriate category, and add the terms that will be words’ prefix or suffix.

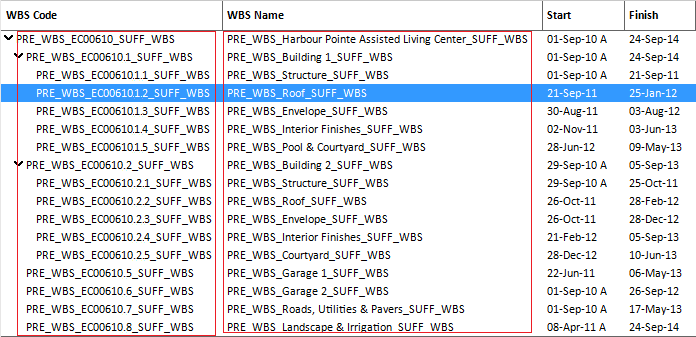

Then, you go to “Clean” ribbon and click on the “Batch” button. The end result when adding prefix/suffix are given in the image below.

Converting Data

The software features an option to convert Global and EPS activity codes to Project Activity codes and EPS to Global Activity Codes. The activity codes are important to schedulers and planning engineers when creating different types of work performance reports.

So here are the type of categories that can be converted with ScheduleCleaner:

  • Convert Global/EPS to Project Activity Codes.
  • Convert EPS to Global Activity Codes

Moreover, you can convert Global calendars that are used in the project plan into project and shared resource calendar. In this way, you will avoid errors when importing the XER file into P6 database.

Save time with process automation

Who doesn’t want automation? Automation saves time and gives a sense of comfort and security.

Here, it’s not actually a full automation because you still need to click on a button in order to perform an action or combination of actions. But this is quite useful when you have a set of actions that need to done on a daily basis such as sending a daily progress report to top management or uploading recent progress into a database.

Automation is ScheduleCleaner is viable through creating Templates, save them and apply to imported XER files.

Batch Clean

“Batch Clean” is a feature that works with templates. User must create at least one template and assign it to a file in order to use the batch file cleaning.

“Quick Clean” on the other side is more suitable when user wants to modify very small number of project files, while “Batch Clean” is useful when large number of data files, usually located in different folders, need to be modified.

Final Words

ScheduleCleaner enables you to quickly remove or anonymize confidential data in XER data files exported from Primavera P6, while keeping the schedule integrity.

It replaces the many work when “cleaning” XER file prior to sharing the file or import to a production database.

As the manual process of removing or anonymizing project data is time-consuming and unreliable, performing Batch Clean in combination with Templates can speed up the process.

Organizations can significantly improve their productivity, communication and security by integrating ScheduleCleaner in their working environment.

P6 Date Formats – Quick Data Hacks!

In dealing with P6 data, sometimes what you expect, is not what you get. When it comes to date formats, this is quite relevant. Here is a guide to transform XER and P6 copy-pasted values into proper date formats.

In dealing with P6 data, sometimes what you expect, is not what you get. When it comes to date formats, this is quite relevant. Here is a guide to transform XER and P6 copy-pasted values into proper date formats.

Problems with XER file format

When dealing with a native XER file, you need to be careful because you can’t always use the field you want. Below is a screen print from a typical TASK dataset.


When an actual start/finish date has been captured (as seen in the “act_start_date” and “act_end_date” fields above), then the dates that are stored in the “early_start_date” and “early_end_date” fields are no longer valid.

Thus, you need a routine to check if an actual start date exists, and use that in lieu of the early dates. Ultimately there is no good way to deal with, excel to write a routine somewhere in your data import routines – if importing in a database. Another option is to edit your XER import excel file to add 2 new columns for simply “start” and “finish” that will run your check for you in the native excel file before you import the data into a database.  This is an easy hack anywhere you manage your data: However, a core issue here is:

Where will you clean your data?

For me excel is often easier, but that does mean your processes will not be fully automated. Either way, the fix is fundamentally as seen below




Problems with P6 format (copy-paste)

If you are not dealing with an XER, you will likely simply copy-paste directly from P6 into Excel. Here again, we have to deal with a few (minor annoying) complications. Everyone I know in the planning world deals with this and has their own routines. I wish I could post them all, because some truly elegant solutions exist. The below is not meant to be “do it this way”, just more of an indication that if perhaps you are running into difficulty “this will work!”.

Start Finish
22-Oct-18 A 9-Sep-19
10-Sep-19 10-Sep-19
05-Jul-19* 10-Sep-19
27-May-19 A 10-Sep-19
03-Dec-18 A 10-Sep-19

Above we can see a typical copy-paste result from P6. Obviously, this is filled with non-date formatted cells. This is caused by the ” A” indicator for activities that have an actual date, and a “*” for activities that have some sort of constraint applied. I have seen a few equation based solutions to strip the bad characters out. I find a code based solution to be slightly more elegant. It also means I do not have to deal with adding extra columns to my file, or performing any copy-paste values. But again, I am sure we all have nice solutions.

The easy fix I use: Scrubb_Data().

Sub Scrubb_Data()

Dim xChars As String
xChars = “*”

ActiveWindow.SmallScroll ToRight:=3
Selection.TextToColumns Destination:=Range(“V1”), DataType:=xlDelimited, _
TextQualifier:=xlDoubleQuote, ConsecutiveDelimiter:=True, Tab:=False, _
Semicolon:=False, Comma:=False, Space:=True, Other:=True, OtherChar:=xChars, FieldInfo _
:=Array(Array(1, 3), Array(2, 9), Array(3, 9)), TrailingMinusNumbers:=True

End Sub

This routine only works on 1 column at a time. For me, I can simply copy and paste the select statement and insert a routine for each excel column with a P6 date  (typically just start and finish). After pasting in P6 data, I will open the routine and click “play”. You will need a macro enabled file and will need to be at least a little comfortable with “view code”. There are a few options to auto call this function using a button, call the function when you close the file, many different options.. They all require a bit of VBA knowledge, although, like seriously, who isn’t in our world.

For the above, I ripped most of this from a routine someone else wrote (a routine that stripped the ” A” off the string. I had to add the xChars = “*” aspect.

For a find/replace statement, it is possible to use the below string to strip the “*” off. Here we have to use ~*~ because if we use *, it will replace the entire string. Again, a million ways to handle this.



Again, there are a 100 ways to skin this cat, and all achieve the same result. When we deal with data from P6, I find it so amazing that when you ask 10 people how we deal with the data, you will end up with at least 20 replies. Ultimately,  I believe this issue is a telling critical flaw in the underlying software. In the digital world, we need a completely different paradigm shift in the way we store and manage data.

Specifically in the Project Management world, I doubt anyone who uses tools such as JIRA or DevOps have to deal with annoyances such as this. Thus, perhaps we too should be using those tools!
