Category: Databricks

Benchmarking , Snowflake, Databricks , Synapse , BigQuery, Redshift , Trino , DuckDB and Hyper using TPCH-SF100

(Disclaimer : I use BigQuery for a personal project and it is virtually free for smaller workload, at work we use SQL Server as a Data Store, I will try my best to be objective )

TL:DR ;

Run TPCH-SF100 benchmark (base table 600 million rows) to understand how different Engine Behave in this workload using just the lowest tier offering, you can download the results here

Introduction

Was playing with Snowflake free trial ( maybe for the fifth time) and for no apparent reason, I just run Queries on TPCH-S100 Dataset, usually I am interested in smaller dataset, but I thought how Snowflake may behave with bigger data using the smallest cluster, long story short, I got 102 second, posted it in Linkedin and a common reaction was Snowflake is somehow cheating.

Obviously I did not buy the cheating explanation , as it is too risky and Databricks will make it international news.

Load the Data Again

Ideally I would have generated the Data myself and load it into Snowflake, generating 600 Million records in my laptop is not trivial, my tool of choice, DuckDB has an utility for that but it is currently single threaded, instead

  • I exported the data from Snowflake to Azure Storage as parquet files
  • Download it to my Laptop, generate new files using DuckDB as in Snowflake you can’t control the minimum size of files, you can control the max but not the Min

Snowflake Parquet External Table

My Plan was to run Queries directly on Parquet hosted on azure storage, the experience was not great at all, Snowflake got Query 5 join order wrong

Snowflake Internal Table

I loaded the parquet files generated by duckdb, Snowflake getting extremely good results. what I learnt, whatever Snowflake magic is doing, it is related to their proprietary file format.

BigQuery External Table

I have no frame of reference for this kind of workload, so I loaded the the data to BigQuery using external table in Google Cloud, Google got 5 minutes, one Run, 2.5 $ !!!!

BigQuery Internal Table

Loaded Data to BigQuery internal format, notice, BigQuery don’t charge for this operation , 2 Minutes 16 second, 1 Cold Run.

BigQuery Standard Edition

BigQuery added new pricing model where you pay by second, after the first minutes, I used the Standard Edition with a small size, I run the same query two time, unfortunately the new distributed disk cache don’t seems to be working, same result 5 minutes, that’s was disappointing

Redshift Serverless

Imported the same Parquet files into Redshift serverless, The schema was defined without Distribution keys, The results are for 3 Runs, the first run was a bit slower as it is fetching the data from the managed storage to the compute SSD the other 2 runs are substantially faster, I thought it is fair to have an average, Using the lowest Tier 8 RPU (2.88 $/Hour)

Redshift Serverless hot run was maybe the fastest performance I have seen so far, but they need still to improve on their cold Run.

I was surprised by the system overall performance, from my reading, it seems AWS basically rewrite the whole thing including separating compute from storage, Overall I think it is a good DWH.

Trino

Trino did not run Query 15, had to run a modified syntax but same results, 1 Run from Cold Storage, I am using the excellent service from Starburst Data

Synapse Serverless

Honestly, I was quite surprised by the performance of synapse serverless, initially I tested with the smaller file size generated by Snowflake and it did work, the first run failed but the second works just fine, I did like it, it did failed quickly, notice that Synapse run statistics on parquet files, so you would expect a more stable performance, not the fastest, but rather resilient.

Anyway , it took from 8-11 minutes, to be clear that’s not Synapse from two years ago.

Not related to the benchmark but I did enjoyed the lake database experience

Databricks External Table

I had not a great experience with Databricks, I could not simply pass authentication to Databricks SQL, you need a service principal and registering an App, and the documentation keep talking about Unity, which is not installed by default, This is a new install why Unity is not embedded if it is such a big deal ?

Anyway, First I created an external Table in databricks using the excellent passthrough technique in the Single Node Cluster, Databricks got 12 minutes,

Databricks Delta table

let’s try again with Delta, I created a new managed table, run optimize and analyse , (I always thought delta has already the stats), but it didn’t seems to make a big difference, still around 11 minutes, and this running from the disk, so no network bottleneck

DuckDB

My Plan was to run DuckDB on Azure ML, but I need a bigger VM than the one provided by default, I could not find a way to increase my Quota , I know it sounds silly, and I am just relating my experience, turn out Azure ML VM Quota is different from Azure VM, it did drive me crazy why I could get any VM in Databricks but Azure ML keep complaining I don’t have enough CPU.

Unfortunately I hit two bugs, first the native DuckDB file format seems to generate double the size of Parquet, the dev was very quick to identify the issue, the workaround is to define the table schema and then load the data using insert, the file became 24 GB compared to the original 40GB parquet files.

I End Up going with parquet files, I was not really excited by loading a 24 GB file in a storage account.

I run the Queries in Azure Databricks VM E8ds_v4 (8 cores and 64 GM of RAM)

As I am using fsspec with disk cache, the remote storage is used only the first run, after 4 tries, Query 21 keep crashing the VM šŸ˜¦

Tableau Hyper

Tableau hyper was one of the biggest surprise, unfortunately, I hit a bug with Query 18, otherwise, it would have being the cheapest option.

Some Observations

  • Initially I was worried I made a mistake in Snowflake results, the numbers are just impressive for a single node tier, one explanation is the Execution Engine is mostly operating on compressed data with little materialization , but whatever they are doing, it has to do with the internal table format, which bring a whole discussion of performance vs openness, personally in a BI scenarios, I want the best performance possible, and wonder if they can get the same speed using Apache Iceberg.
  • Synapse Serverless improved a lot from last year, it did work well regardless of the data size of individual parquet files that I throw at it, and in my short testing it was faster than databricks and you pay by data scanned, so strictly speaking pure speed is not such a big deal but without a free result cache like BigQuery, it is still a hard sell.
  • Azure ML Quota policy was very confusing to me, and honestly I don’t want to deal with support ticket.
  • Databricks; may well be the fastest to run 100 TB, but for 100 GB workload, color me unimpressed.
  • DuckDB is impressive for an open source project that did not even reach version 1. I am sure those issues will be fixed soon.
  • Everything I heard about Redshift from twitter was wrong, it is a very good DWH, with Excellent performance.
  • BigQuery as I expected has excellent performance both for parquet and the native table format, The challenge is to keep the same using the new auto scale offering. added Auto scale performance, I think Google should do better.

Summary Results

You can find the results here, if you are a vendor and you don’t like the results feel free to host a TPCH-SF100 dataset in your service and let people test it themselves.

Note : Using SQL Query History : Bigquery one Cold Run , Synapse Serverless , Redshift Serverless and Snowflake a mix of cold and warm

(Note : Synapse Serverless always read from remote storage)

Databricks I am showing the best run from Disk, there is no system table, so I had to copy paste the results from the console.

Pricing

I did not kept the durations for Data load, it is just the cost for Read, obviously it is a theoretical exercise, and does not reflect real life usage which depends on other factors like concurrency performance , how you can share a pool of resources to multiple departement,free results cache, the performance of your ODBC drivers etc.

it is extremely important to understand what’s included in the basic price, for example.

Results cache:

BigQuery, Snowflake, Redshift results cache are free and you don’t need a running cluster, in Databricks you pay for it, Synapse don’t offer result cache at all.

Data loading :

BigQuery data loading is a free operation and other service like sorting and partitioning, in other DB you needs to pay.

Egress Fees :

Snowflake/BigQuery offer free egress fees, Other vendors you may pay, you need to check

Note :

BigQuery : for This workload make more sense to pay by compute not data scanned, either using auto scale, reserved pricing etc, I will try to test Auto scaling later.

Snowflake : I used the standard edition of Snowflake

Edit : I used a Google Colab notebook with a bigger VM for Hyper and DuckDB, see full reproducible notebook

Final Thoughts

Cloud DWH are amazing tech and only competition can drive innovation, not FUD and dishonesty, regardless of what platform you use, keep an eye on what other vendors are doing, and test using your own workload, you may be surprised by what you find.

Benchmark Snowflake, BigQuery, SingleStore , Databricks, Datamart and DuckDB using TPC-H-SF10

Edit 18 May 2022: Microsoft released Datamart which has excellent performance for this type of Workload.

Another blog on my favorite topic, interactive Live BI Workload with low latency and high concurrency, but this time, hopefully with numbers to compare.

I tested only the Databases that I am familiar with, BigQuery, Snowflake, Databricks , SingleStore , PowerBI Datamart and DuckDB

TPC-H

The most widely used Benchmark to test BI workload is TPC-DS and TPC-H produced by the independent Organization TPC, unfortunately most of the available benchmark are for big dataset starting from 1 TB, as I said before I more interested in smaller Workload for a simple reason, after nearly 5 years of doing Business intelligence for different companies, most of the data model are really small, ( my biggest was 70 Million rows with 4 small dimension tables).

Benchmarking is a very complex process, and I am not claiming that my results are correct, all I wanted to know as a user is an order of magnitude and a benchmark can give you a high level impression of a database performance.

Schema

I Like TPC-H as it has a simpler schema 8 tables and only 22 Queries compared to TPC-DS which require 99 Queries.


Some Considerations

  • Result Cache is not counted.
  • The results are using warm cache and at least one cold run, I run the 22 Queries multiple times.
  • Databricks by default provide a sample Database TPC-SF05, the main Table Lineitem is 30 Millions rows, I don’t know enough to import the data and apply the proper sorting etc , so I preferred to use the smaller dataset. I did create a local copy by using create table as select ( Loaded SF10 Data)
  • Snowflake and SingleStore have SF10 and other scale by default.
  • BigQuery, I imported the data from Snowflake , I sorted the tables for better performance, it is a bit odd that BigQuery don’t provide such an important public dataset by default
  • Microsoft Datamart no sorting or partitioned was applied , the data was imported from Biguery.

No Results Cache

Most DWH support results cache, basically if you run the same Query and the base tables did not change the Engine will return the same results very quickly, obviously in any benchmark, you need to filter out those queries.

  • In Snowflake you can use this statement to turn the results cache off
ALTER SESSION SET USE_CACHED_RESULT = FALSE;
  • In Databrick
SET use_cached_result = false
  • BigQuery, just add an option in the UI
  • SingleStore and Datamart, does not have a result cache per se, the engine just keep a copy of the Query Plan, but it scan The Data every time.

Warm Cache

Snowflake, SingleStore and Databricks leverage the local SSD cache, when you run a Query the first time, it scan the data from the cloud storage which is a slow operation, then when you run it again the Query will try to use the data already copied in the local disk which is substantially faster, specially with Snowflake if you want to keep the local warm cache it make sense to keep your Cluster running a bit longer.

BigQuery is a different beast there is no VM, the data is read straight from the Google Cloud Storage, yes google Cloud Network is famous for being very fast, but I guess it can not compete with a local SSD Disk, anyway that’s why we have BI Engine which basically cache the data in RAM, but not all Queries are supported, actually only 6 are fully accelerated as of this writing. ( see Limitations )

Query History

Getting Query results is very straightforward using information_Schema, except for databricks, it seems it is only supported using an API, I just copied one warm run and paste it to excel and load it from there.

Engine Used

  • Snowflake : X-Small (Lowest tier)
  • Databricks : 2X-Small (Lowest tier)
  • Single Store : S-0
  • BigQuery : on Demand + 1 GB Reservation of BI Engine
  • Datamart : included with PowerBI Premium, official spec not disclosed.
  • DuckDB : my laptop, 16GB RAM šŸ™‚

Results

The 22 Queries are saved in this repo, I am using PowerBI to combine all the results

let’s start with

Snowflake VS BigQuery

Snowflake Vs SingleStore

Snowflakes VS Databricks

Notice Databricks is using the smaller Dataset SF05, 30 million rows and still Snowflake show better performance

Overall

Edit : due to feedback, I am adding the sum of all Queries, You can download the results here

Edit : 26-Jan-2022, I Updated the results for Databricks SF10, I Uploaded the same data used for BigQuery, then created Delta Table and applied optimize Z Order

Take away

  • Snowflake is very fast and has consistent results for all the 22 Queries, Except Query 13 is a bit odd

  • SingleStore is remarkable but Query 13 is not good at all and skew the overall performance.

  • BigQuery is fantastic when BI Engine works ( only 11 Queries are supported from the total of 22)

  • Databricks performance in TPC-H-SF05 is problematic, I just hope they release a proper TPC-H-SF10 dataset and information schema like other DWH

  • Datamart has the best user experience, the only Data Platform where you can load the data without writing any Code,The same as Singlestore; Query 13 has a very Big Cost on the overall performance.

  • DuckDB : Query 9 skew the overall performance and probably I need a new laptop šŸ™‚

First Impression of Databricks SQL

Edit : 23 Dec 2021, Shant Hovsepian from Databricks was kind enough and gave me some suggestion, Blog Updated.

Edit : 25 Dec 2021, added a note regarding Delta Lake open storage format.

This is another short blog on a series of my first impression of using different Data warehouse Engine and how they behave when used for a BI Workload, I am particular interested in small dataset and Mainly looking at concurrency and latency.

How to conduct a simple Test

The approach is the same, Build a simple PowerBI report using Direct Query , you can use Tableau with Live connection too or you favorite BI tool.

I run one instance of the report, I like to use play slicer to simulate user interaction, then a second instance etc, and see how the Engine behave

Setup Databricks SQL

Databricks has made an amazing job, The Workspace is very neat and intuitive, there is no Mention of the word Spark at all, they hided all the complexity, as far as I am concerned, it act like any Cloud Data warehouse, I had some hiccups though, Azure did complain about some Cpu Quota, it was easy to fix, but very annoying, Google Cloud setup was easier, but as of this writing, there is no SQL interface yet and you have to pay a 100-200 $ cost for Kubernetes, I end up Using Azure

when you explore a new SQL Database, the first thing you check is the sample Data, Strangely, it will ask for a Compute to be running to even have a look at the metadata.

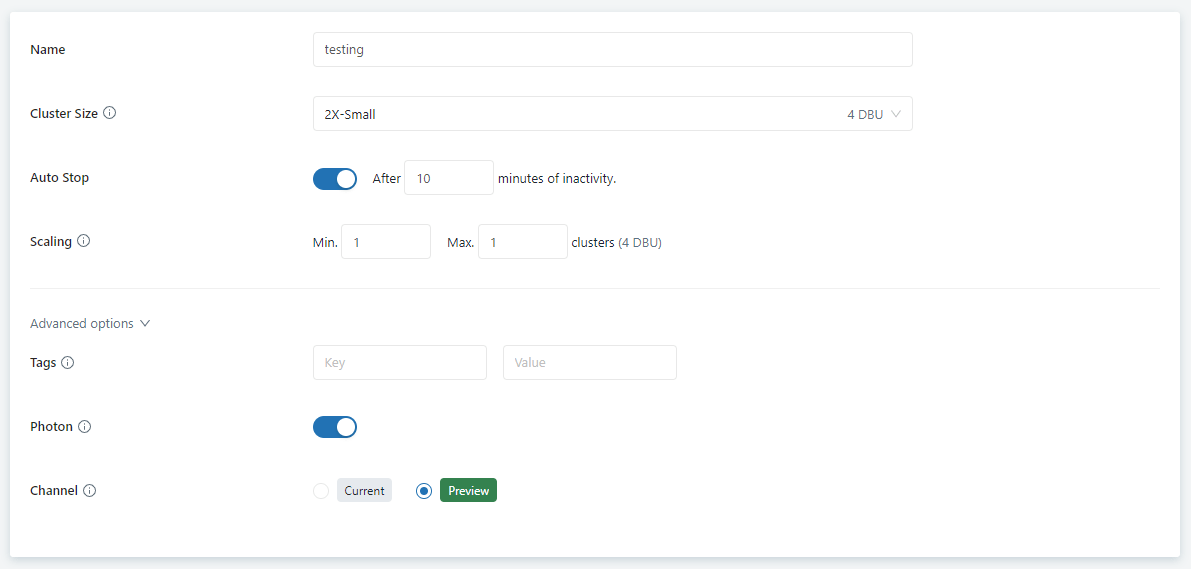

Creating a new Compute is very simple, I really like that you can select which version of the engine you want to run, Current or Preview, Auto Stop works as expected, but

it is really slow to start a Cluster ( around 4 minute)

The Minimum duration for Auto Stop is 10 minutes ( in practise, you should increase it to 1 Hour, a user waiting 5 minutes for his report to Start is not fun)

Databricks at least in Azure is a platform as a service, when you create a new cluster it will use your own resources to Provision a new VM (CPU, Disk etc), no surprise it take so long to start a new Cluster.

I notice when you resize a Cluster, the Engine became offline, it make sense maybe to use Auto Scaling instead.

For the Pricing, you pay in Databricks Unit (DBU) 1 DBU = 0.22 $/Hour and the resources generated, I can’t find the reference, but it seems an 2X-Small require 2 CPU with a cost of 0.64 $/Hour.

so the Total for my test Cluster is 0.22 * 4 + 0.64 * 2 = 2.16 $/Hour

Testing PowerBI

Connecting to PowerBI and Tableau was literally a 2 clicks away, In PowerBI you click on a link and it will generate a PowerBI report file, fantastic


I used some sample Data provided by Databricks, the main fact Table is 1 GB and has 30 Million records

here is my PowerBI Data Model

And here is the PowerBI report, Basically Looping on Customer Key and generate some simple aggregate, the report generate 3 SQL Queries every 5 Second

When I run Only 1 Instance of the report, it works rather well, added second Instance, still behaved well, but when I added a third Instance, it became unusable, and Queries start to get added to a Queue, the Cluster did not keep up with the Workload, I am surprise by the results

I notice something interesting, it seems, Databricks does not support result cache, what’s currently supported is SSD cache, it seems the Engine cache the raw data in the Local SSD, but the Engine will run the same Query even when the table did not change and it is the same SQL expression.

Using Performance analyser in PowerBI, the Query return in around 1.5 to 3 second, definitely it is not a sub second territory here.

Second try

Turn out the sample data Provided by Databricks is located in Washington state, in my defence, I thought when you create a new account, they copy the data in your account, that’s not the case.

I copy the same data into my local storage

redone the same test using 4 instance of PowerBI instead of 3, and Databricks behaved way better !!!!

Result Cache

The result cache implementation in Databricks is a bit unusual , Take this Query as an example

select
  `o_custkey`,
  sum(`l_quantity`) as `C1`,
  count(1) as `C2`
from
  (
    select
      `OTBL`.`l_quantity`,
      `ITBL`.`o_custkey`
    from
      `hive_metastore`.`default`.`lineitem` as `OTBL`
      inner join (
        select
          `o_orderkey`,
          `o_custkey`,
          `o_orderstatus`,
          `o_totalprice`,
          `o_orderdate`,
          `o_orderpriority`,
          `o_clerk`,
          `o_shippriority`,
          `o_comment`
        from
          `hive_metastore`.`default`.`orders`
        where
          `o_custkey` in (5, 11, 140, 4)
      ) as `ITBL` on (`OTBL`.`l_orderkey` = `ITBL`.`o_orderkey`)
  ) as `ITBL`
group by
  `o_custkey`
limit
  1000001

the First run took 2.75 second

The Second Run, which should be cached as I did not change the tables

1.19 second, is not a great result, I know Snowflake result cache return around 50 ms, and BigQuery around 100- 200 ms, if I understood correctly Because Databricks use an Open Storage Format, it has always to go back to Azure storage and check if something has changed, which introduce and extra latency.

Random Thoughts

Databricks SQL is a Data-Warehouse, in my opinion all this talk about lake House is just a distraction, as far as I can see, it is a Solid DWH with an open storage format ( it is a good thing), it is multi cloud which is a big advantages and the team is investing a lot in new functionalities.

I am aware that the biggest competitive advantage of Databricks compare to Snowflake is Delta Lake, its open table format, basically you can read your data for free see example here with PowerBI or you can use literally another Compute engine, but in this first look, I was only interested in Query performance not the overall architecture. (BigQuery has an open Storage API but it is not free)

Engine Startup time is really slow, 5 minute is too much, specially when other vendors offer 5 second startup ( Looking forward for the serverless preview in Azure).

I am not sure what’s going on exactly with concurrency, it seems Databricks is really good at aggregating massive data, but I am not sure, if is suited for High concurrency , low latency needed for Interactive BI Workload.

Databricks Got me interested in their engine, I need further testing, but it seems we have another interesting Azure DWH offering (Beside Snowflake).

After I quickly tested Azure Synapse ( Both Serverless and Dedicated) and Snowflake, I think for high Concurrency, Low latency , small dataset workload, Snowflake has an advantage, Databricks is a second, Synapse does not support this workload at all.

Some readers thought I was a bit unfair to databricks but that was not the intention as far as I am concerned, in the last 10 years, we saw some serious innovation in Data warehouse space.

BigQuery separating Storage from Compute.

Snowflake introducing the 60 second pricing Model, and being Multi Cloud

Databricks going even further and making the Storage open, so your data is not tied to one Engine.
