Dynamic Change of Dimension using Google Data Studio Parameter

At Last Google Data Studio added the option to let the user change the value of parameter, which will make some new scenarios possible, I will try to show some new cases where either it was extremely painful to do, or simply not possible.

In this report, I added some cases where I think it is useful, for this Blog, I will start with a very common scenario

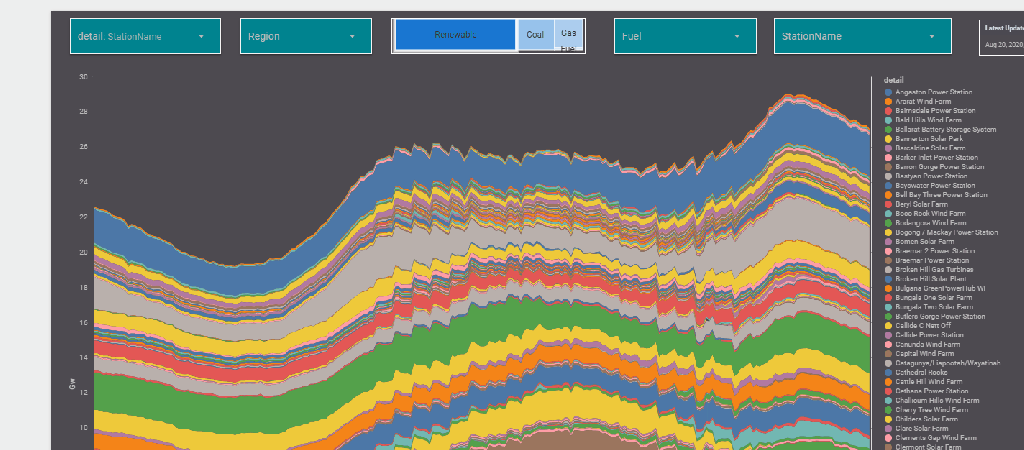

The report Show the Daily Electricity produced in eastern state of Australia, just by Using a slicer, the level of details will change to Region or Technology, or individual Generators

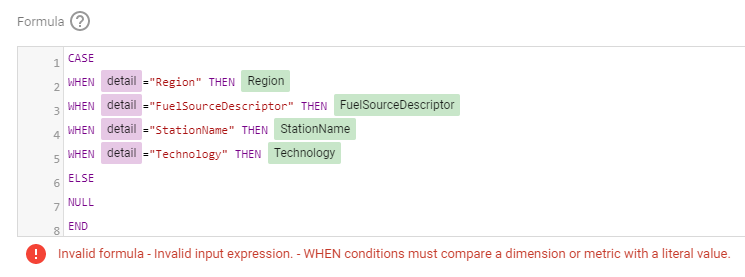

Currently it does not work with parameter in the formula engine,when I tried I got this error ( Nimantha has a solution using Regex which does not require BigQuery, you can see his report here)

Update as 26 August 2020

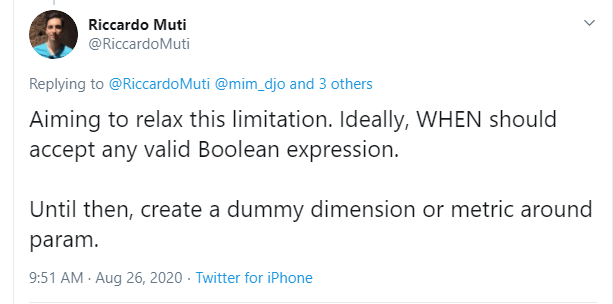

Riccardo from the dev team suggested a simple workaround,

let’s just create a dummy dimension that take the values from the parameter

( I swear, I first tried this before, but it was not working, anyway calculated field in GDS are still a mystery for me)

now you can use it in your calculation

Alternatively you can used a Custom Query from BigQuery, luckily it is accelerated by BI Engine, so it is fast and use the free 1 GB memory provided by Data Studio

WHEN @detail="Region" THEN Region
WHEN @detail="FuelSourceDescriptor" THEN FuelSourceDescriptor
WHEN @detail="StationName" THEN StationName
WHEN @detail="Technology" THEN Technology
AS Level_detail

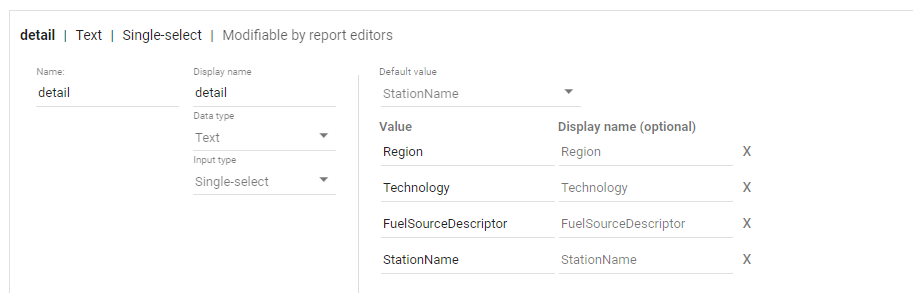

then you added the values to the parameter, notice, you can’t have a list of values from a data source, you have to manually type the values.

now the column “Level_detail” will dynamically switch to column “Technology”, “Region” etc based on the selected value in the parameter Detail

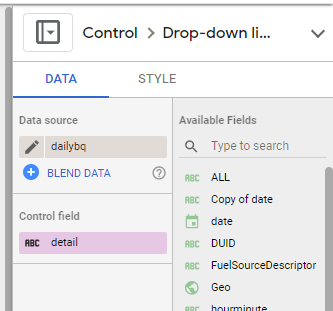

now you add the Parameter “detail” to a filter control, notice Parameter are color code Pink, a nice visual clue !!

now you use your dynamic column in a visual

and here is the final results

Personally I think it is a game changer for Data Studio, specially when you combine it with the Power of BI Engine, interesting time ahead


3 thoughts on “Dynamic Change of Dimension using Google Data Studio Parameter”

  1. This work around isn’t working for me.

    To give a little back ground :

    Based on DATE_DIFF() of current date and a date field in my data, I created datediff variable to calculate difference of days between the 2 dates.
    I have created a parameter with “Last 3 Months” & “Last 6 Months” as values in it. I want to use this as a filter on the data studio report.
    I added the parameter to a dummy dimension.
    I want to use this dummy dimension in a case statement to work as :

    WHEN dummy =”Last 3 Months” THEN datediff <= 90
    WHEN dummy ="Last 6 Months" THEN datediff <= 180

    This is resulting in an error
    "message": "Invalid input expression. – Failed to parse CASE statement.:SELECT CASE WHEN t0.calc_5yahol5bhc = 3 THEN t0._datediff_ <= 90 WHEN t0.calc_5yahol5bhc = 6 THEN t0._datediff_ <= 180 END AS alias FROM t0;"

    Kindly help.
