Querying a Onelake Table with RLS and CLS Using DuckDB’s MSSQL Extension

Microsoft Fabric Lakehouse now supports Row-Level Security (RLS) and Column-Level Security (CLS) . The best part? These policies are enforced at the SQL endpoint, meaning any external tool that connects through it — including DuckDB — automatically respects them.

Let’s walk through a quick example.

The Data

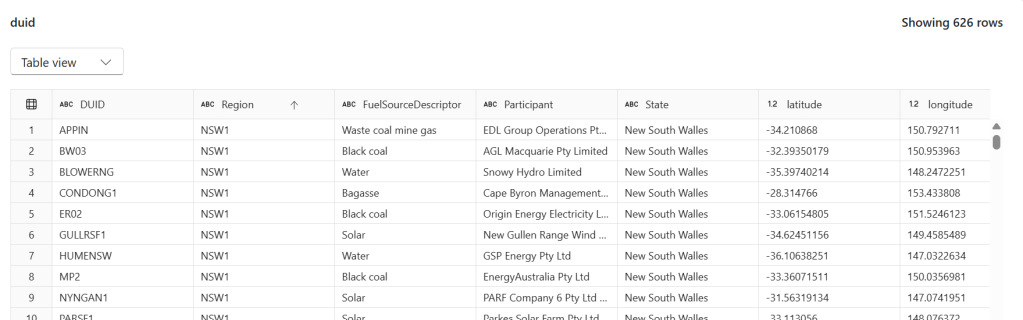

We have a power.duid table containing 626 rows of Australian power generation facilities. Columns include DUID, Region, FuelSourceDescriptor, Participant, State, latitude, and longitude.

Configuring Row-Level Security

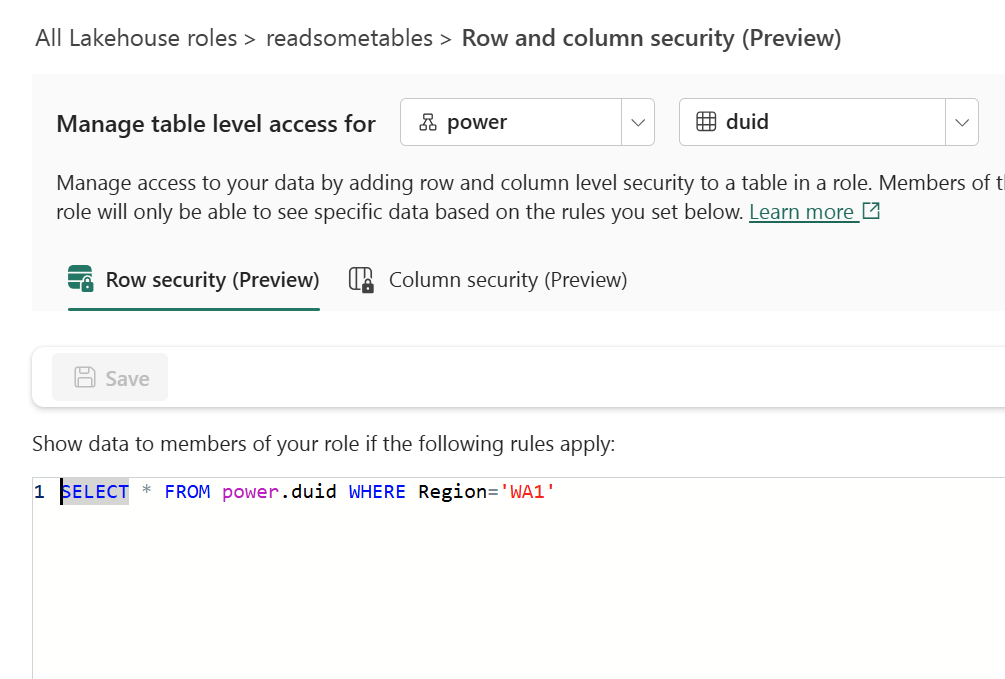

In the Lakehouse role readsometables, we add an RLS rule that restricts visibility to a single region:

SELECT * FROM power.duid WHERE Region='WA1'

Members of this role will only see rows where Region = 'WA1'.

Configuring Column-Level Security

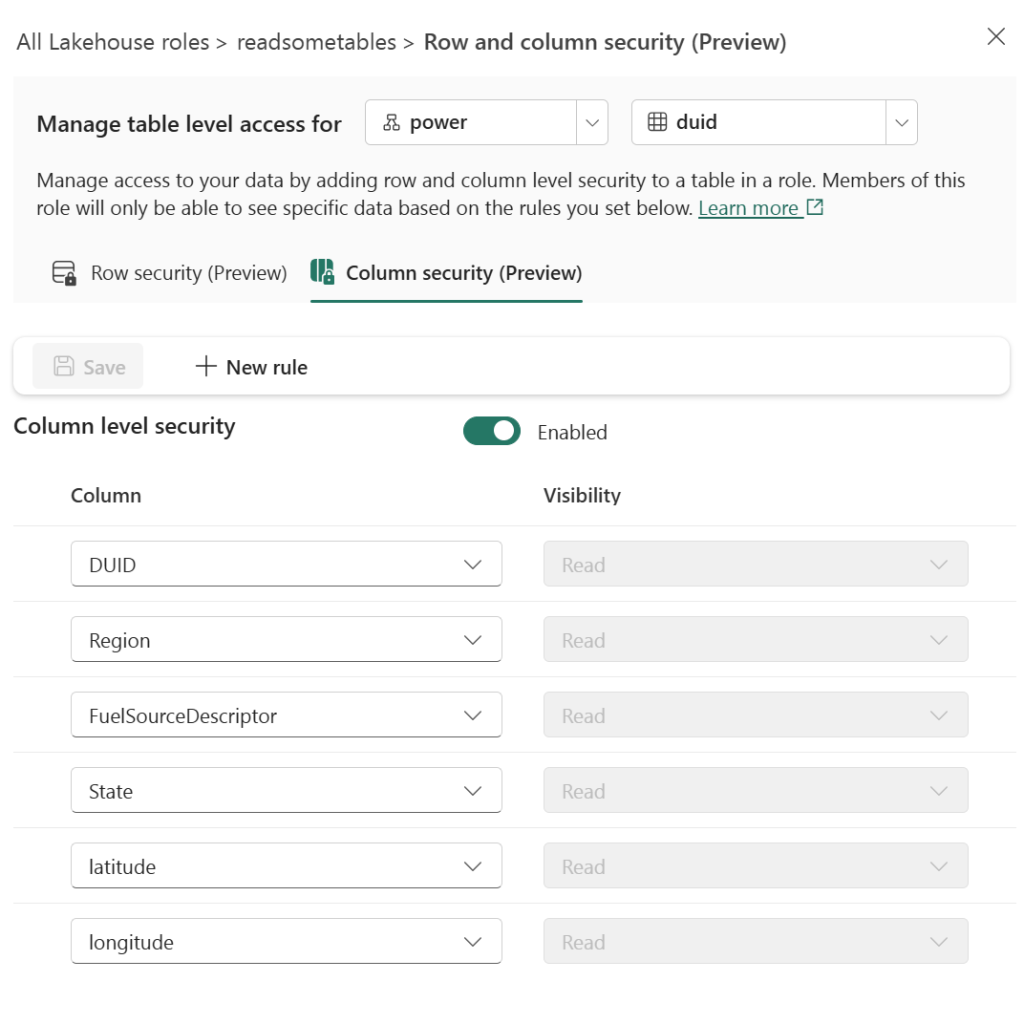

On the same role, we enable CLS and grant Read visibility only to specific columns: DUID, Region, FuelSourceDescriptor, State, latitude, and longitude. The Participant column is excluded.

Querying with DuckDB’s MSSQL Extension

From any Python environment, we can connect to the SQL endpoint using DuckDB’s community MSSQL extension and Azure authentication:

import duckdb
from azure.identity import DefaultAzureCredential

conn = duckdb.connect()
token = DefaultAzureCredential().get_token("https://database.windows.net/.default").token

conn.sql(f"""
    ATTACH IF NOT EXISTS
    'Server=<your-sql-endpoint>;Database=data'
    AS data (TYPE mssql, ACCESS_TOKEN '{token}')
""")

if you are running it inside Fabric notebook, first you need to updgrade duckdb,

!pip install duckdb --upgrade
import sys
sys.exit(0)

the run this code

import duckdb
conn = duckdb.connect()
token = notebookutils.credentials.getToken('sql')
conn.sql(f"""
                install mssql from community ;
                ATTACH if not exists
                'Server=SQL_endpoint;Database=data'
                AS data (TYPE mssql, ACCESS_TOKEN '{token}')
          """)



Now when we query, RLS and CLS are enforced server-side:

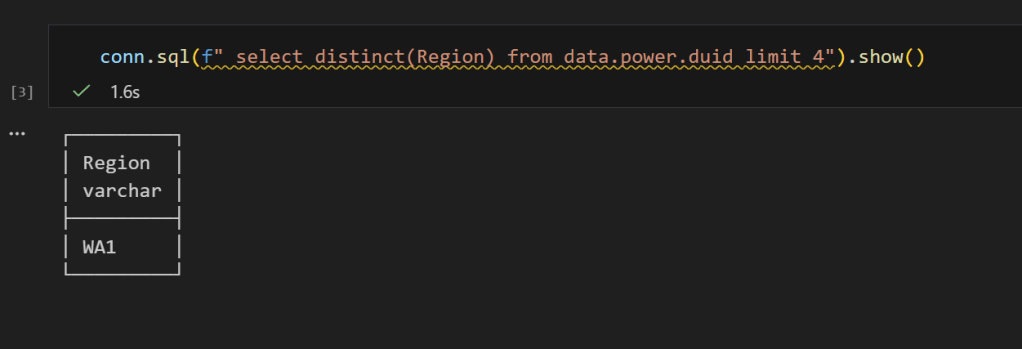

conn.sql("SELECT DISTINCT(Region) FROM data.power.duid").show()

Only WA1 — the RLS filter is working. And if we select all columns:

conn.sql("SELECT * FROM data.power.duid LIMIT 4").show()

you get an error, that you can not select Participant

No Participant column — CLS is doing its job, now if you remove it , everything works fine

Takeaway

RLS and CLS in Fabric Lakehouse work natively with trusted engines like Power BI, Spark, and the SQL endpoint. When you connect through the SQL endpoint using DuckDB (or any external tool), you’re leveraging the SQL endpoint as the trusted engine that enforces these security policies server-side.
